Pixel Configuration
SMD Triad LED GOB
Risoluzione
1.920x1.080 pixel reali
Pixel Density
640.000 dot/m²
Cabinet Material
Aluminum alloy
Pixel Pitch Category
P1,2
Maintenance Method
Front maintenance
White Balance Brightness
600 cd/m²
Color Temperature
3.000-10.000 °K
Viewing Angle
160° (H)/160° (V)
Brightness Uniformity
± 0,003 Cx,Cy
Screen Size
108 inch (275.3cm)
Optimal View Distance
3 m
Operation System
Android 12, Windows 10 (optional with OPS)
Processor
Android: Max 1,5 GHz, A76 × 4 + A55 × 4
Built-in Storage
Android: 256 GB
NIC
Integrated gigabit LAN with router mode enabled
Wireless
Supports concurrent operation in station and
access point (AP) mode, enabling Wi-Fi hotspot functionality
Bluetooth
Integrated BLE module compliant with Bluetooth
5.1 and backward-compatible versions
Video & Audio Input
LINE IN × 1, HDMI IN × 4
Video & Audio Output
LINE OUT × 1, SPDIF OUT × 1,HDMI OUT × 1
Front Panel Interfaces
USB 3.0 × 2, Type-C × 1
Internal Slot at Bottom
USB 2.0 × 1
Control Interface
1 × RS232 serial port
Speakers
Built-in 2x18 W speakers
Driving Method
Constant current driving
Frame Frequency
30 Hz/60 Hz
Grey Level
16 bit
4,2V/40 A (Cabinet Power Supply),
19 V/8 A (Control Power Supply)
Standby Consumption
≤ 0,5 W
Max. Consumption
≤ 1.500 W
Average Consumption
≤ 500 W
Input Voltage
110~240 VAC,50/60 Hz (110V with Low-Voltage
Power Cord)
Working Temperature: 10 to 40 °C
Working Humidity
20% to 80% RH (non-condensing)
Storage Temperature
10 to 50 °C
Storage Humidity
10% to 90% RH (non-condensing)
With Base
2.411,6 (W) × 2.274,95 (H) × 707,5 (D) mm
Without Base
2.411,6 (W) × 1.475,9 (H) × 47,1 (D) mm
Screen size
2.400 (W) × 1.350 (H) mm
Mounting Type
Wall Mounting / Mobile Floor Standing Bracket Mounting
(Packaging Includes Wall-mount Bracket by default)
Packing Method: 1 Wooden case package
Net Weight
85 kg (187.4 lb.)
Package Dimensions
1.494 (W) × 1.239 (H) × 454 (D) mm
LED Module Spare Parts ×4, Multilingual Manual ×1, Bottom Panel Connecter X1, Wall Mounting Bracket X1, Cables (OPS Power cable, OPS Signal Cable, Main Power Cable, Ethernet Cable, Cabinet Cascade Power Cable), Accessories (Lamps, IC, Screws, Expansion Bolt, Tools, etc.)
Red
The device is standby.
Blue
The device is powered on.
Button
On/Off/Sleep button × 1

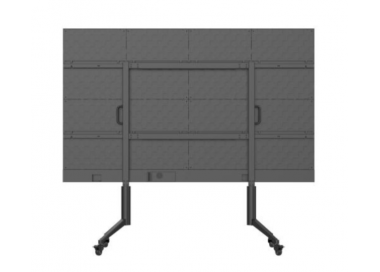

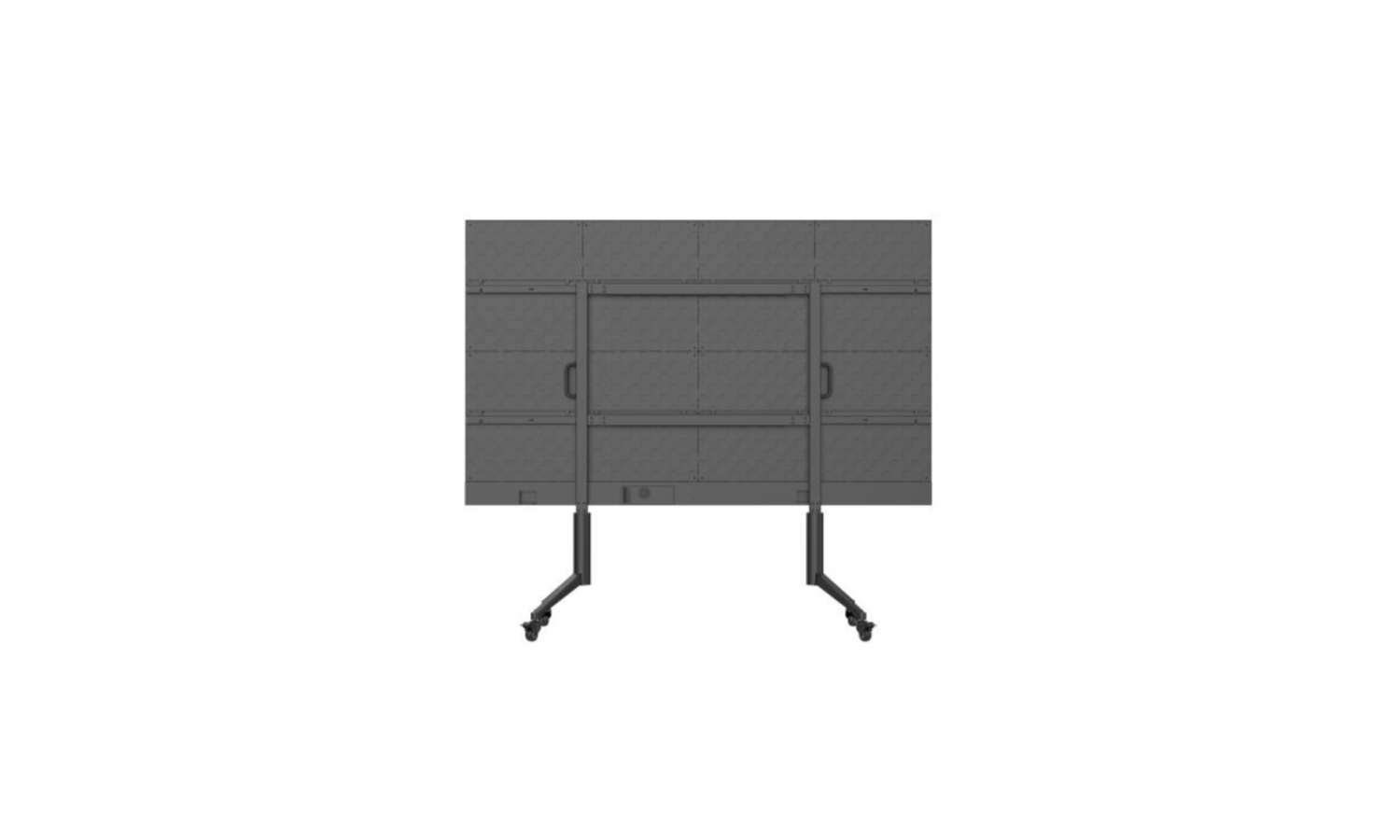

Floor-standing Bracket
DP-D40XCB22-4X4-Q3-NS-Q4-ZY/108
Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors
